EL374
Streamlined Access Control for Enhanced Safety
Compact Access Controller
EL374: Advanced Access Control for Modern Security Demands
EL374 is a single-door compact controller comprising access controller, card reader and touch-sense keypad. Features of the EL374 and the EL363 are similar. The main difference is that the EL374 has a GLCD display whereas the EL363 has a 7-segment display. In addition to RS485, the EL374 also offers LAN or Multi-drop options.
EL374: Intelligent Access Control for Today’s Security Challenges
The ELID EL374 is engineered to deliver high-level access control, integrating cutting-edge technology with dependable performance to secure both commercial and residential spaces.
High Storage Capacity
Stores up to 4,000 user IDs and 2,000 offline transaction records, ensuring continuous operation even during communication interruptions.
GLCD Display with Touch-Sense Keypad
Equipped with a GLCD display and 12 touch-sense keypad for a modern, responsive, and user-friendly interface.
Built-in Card Reader Module (EM / Mifare)
Integrated card reader supporting EM or Mifare technology, depending on the selected reader type, offering flexible authentication options.
Reading Range: 3 – 8 cm
Provides fast and reliable card detection within an efficient operating distance.
Time Zones & Timer Control
Supports multiple timers and time zones, allowing administrators to restrict user access according to specific schedules and time periods.

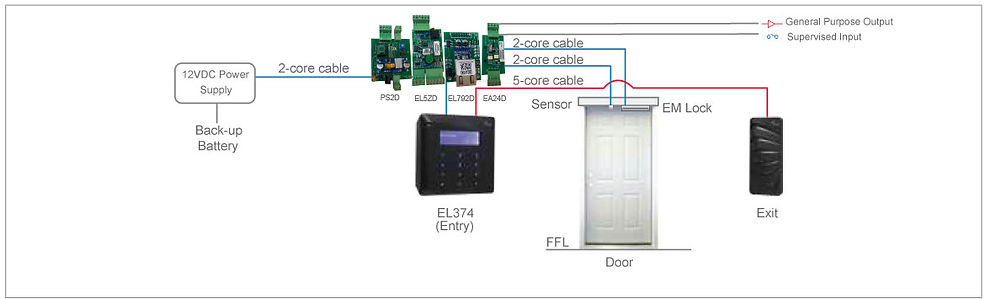

Optional EZ5 Remote Relay Module
Enhance system security by placing input and output connections on a separate remote relay module installed in a secure area to minimize tampering risks.
Simple Programming Setup
Features an intuitive scroll-down menu within the controller, enabling quick and straightforward configuration without complicated procedures.
In-Circuit Firmware Upgrade
Firmware can be updated directly via serial download from a PC, ensuring long-term system flexibility and maintainability.
Accurate Calendar Clock Chip
Equipped with a built-in calendar clock chip to maintain precise date and time tracking.
Includes battery backup for internal data storage and time clock, preserving critical information during power failure.
Battery Backup Support
Supports RS485, Multi-drop communication (with additional converter), or TCP/IP (with optional LAN module) for seamless integration with access management systems.
Flexible Communication Interface
Dimensions: 100 (H) x 135 (W) x 30 (D) mm, designed for sleek and professional installation.
Compact & Slim Design
